Description
RQM3-P
| Valve Size | CETOP R06 |
| ISO | 6264-06 |
| Max. Pressure ( bar ) | 350 |
| Flowrate ( l/min ) | 200 |
| Temp. ( °C ) | -20 to +80 |
RQM5-P
| Valve Size | CETOP R08 |
| ISO | 6264-08 |
| Max. Pressure ( bar ) | 350 |
| Flowrate ( l/min ) | 500 |
| Temp. ( °C ) | -20 to +80 |
RQM7-P
| Valve Size | CETOP R10 |
| ISO | 6264-10 |
| Max. Pressure ( bar ) | 350 |
| Flowrate ( l/min ) | 400 |
| Temp. ( °C ) | -20 to +80 |

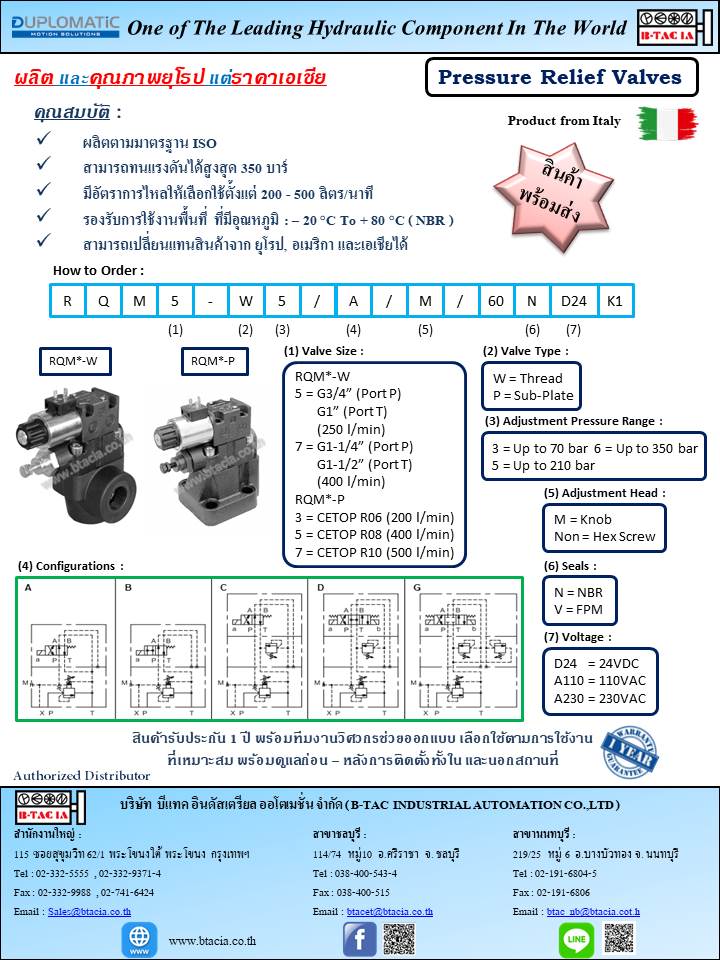

How to Order
| RQM3 | -P5 | /A | /M | /60 | N | -D24 | K1 |
| Valve Size | Pressure Range | Versions | Adjustment Type | Series | Seal | Voltage | Coil Connector |
| RQM3 : CETOP R06
RQM5 : CETOP R08 RQM7 : CETOP R10 |
P3 : Up to 70 bar
P5 : Up to 210 bar P6 : Up to 350 bar |
A
B C D G |
M : Knob
Omit : Hex screw |
60 – 69 | N : NBR
V : FPM ( Viton ) |
D24 : 24 VDC
A24 : 24 VAC A110 : 110 VAC A230 : 230 VAC |
K1 : Plug Connector |

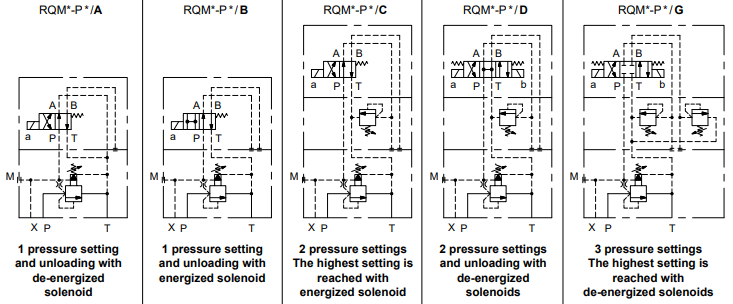

Versions
PDB
