Description
DS3
| Valve Size | NG6 ( 1/4″ ) |
| ISO | 4401-03 |
| Max. Pressure ( bar ) | 350 |
| Flowrate ( l/min ) | 100 |
| Temp. ( °C ) | -20 to +80 |
| Mass ( Kg ) AC Coil
Mass ( Kg ) DC Coil |
1.4 ( Single Coil ) / 2 ( Double Coil )
1.5 ( Single Coil ) / 2 ( Double Coil ) |
DS5
| Valve Size | NG10 ( 3/8″ ) |
| ISO | 4401-05 |
| Max. Pressure ( bar ) | 320 |
| Flowrate ( l/min ) | 150 |
| Temp. ( °C ) | -20 to +80 |
| Mass ( Kg ) AC Coil
Mass ( Kg ) DC Coil |
3.6 ( Single Coil ) / 4.3 ( Double Coil )
4.5 ( Single Coil ) / 6.1 ( Double Coil ) |
How to Order
| DS3 | -S1 | /11 | N | -D24 | K1 |
| Valve Size | Spool Type | Series | Seal | Voltage | Coil Connector |
| DS3 : NG6
DS5 : NG10 |
S1
S2 S3 S4 TA |
10 – 19 | N : NBR
V : FPM ( Viton ) |
D24 : 24 VDC
A24 : 24 VAC A110 : 110 VAC A230 : 230 VAC |
K1 : Plug Connector |

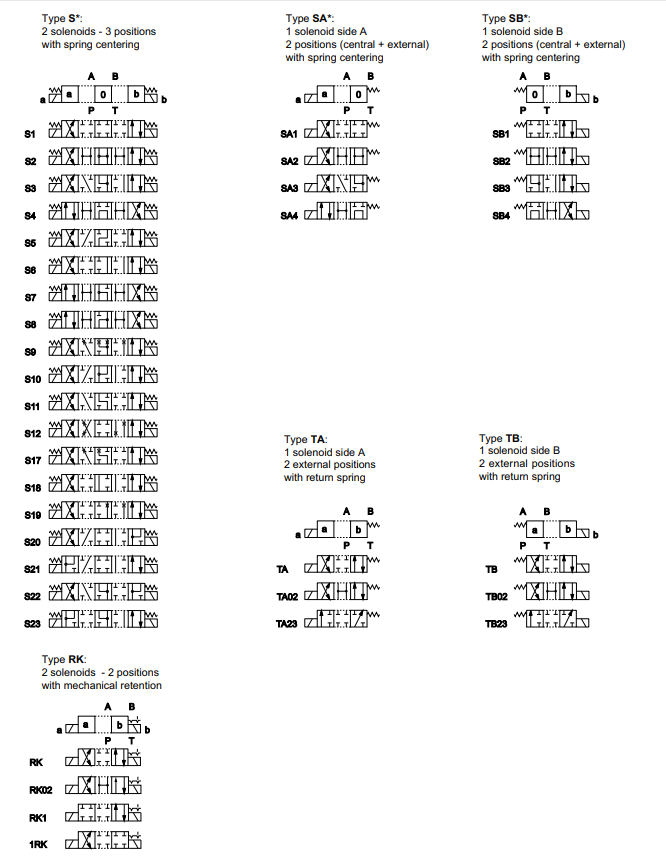

Spool Type
PDB
