Description

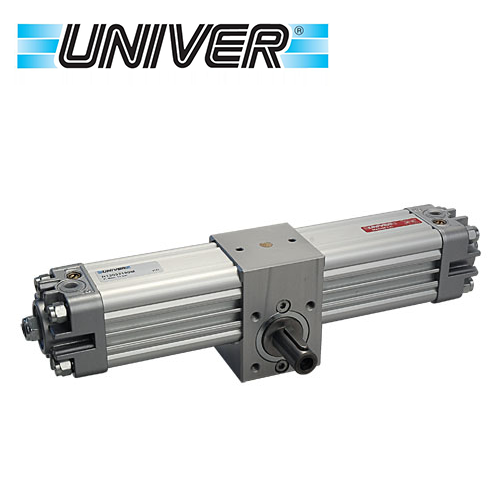

Rotary Actuator
Double acting, Magnetic piston & Adjustable cushioning
Temperature range : -20˚C To +80˚C
How to order : Rxx xxx xxx x
Digit 2 – 3 =
| 11 | Male pinion without adjustment |
| 12 | Male pinion with adjustment ± 5° |
| 13 | Female pinion without adjustment |
| 14 | Female pinion with adjustment ± 5° |
Digit 4 – 6 = Bore, Digit 7 – 9 = Rotation angle
Digit 10 = M for magnetic or None for non-magnetic
| Model | Bore (mm) | Pressure (bar) | Rotation angle (degree) | |||
| Rxx | 32, 40, 50, 63, 80, 100 & 125 |
1.5 – 10 | 90o, 180o(Std.), 270o & 360o | |||
Note : Magnetic switch and seal kit are available
